Roll-On Connector
FUNCTIONALITY
Intervention
Wellbore CleanoutDEPLOYMENT
SECTORS

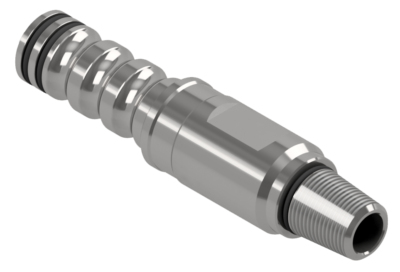

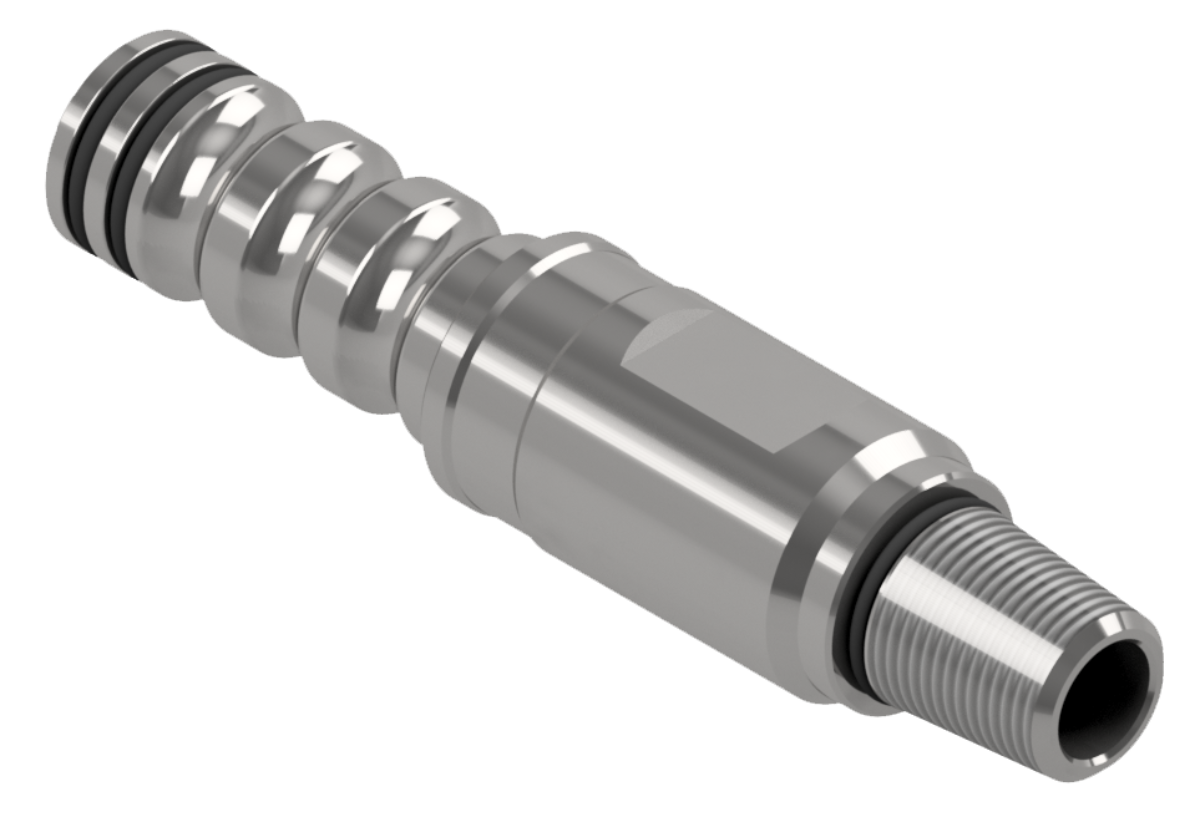

The DTI Roll On Connector forms a sealed joint between the inside of the coiled tubing and the CT tool string or, if using a double roll-on connector, another line of coiled tubing. The connector is made up by pushing the end of the connector into the prepared coiled tuning and then forming the coiled tubing, using a modified pipe cutter, into the grooves of the roll-on connector.
Although not the strongest or full bore, this is a useful, cost effective, disposable connector that is quick and simple to attach. Often used for wash tool strings and where the BHA outside diameter needs to be the same OD as the coiled tubing.
Features
& Benefits
- Three grooves for forming the coiled tubing into.
- Compact design.
- Double Viton O-Ring seals.
- Quick and simple to attach to the coiled tubing using a Roll-On form tool.
- Inexpensive disposable connector.
| PART NUMBER | COILED TUBING SIZE | WALL THICKNESS | OUTSIDE DIAMETER | INSIDE DIAMETER | TOOLSTRING CONNECTION |
|---|---|---|---|---|---|
| RC125095AC32 | 1 1/4" | 0.095" | 1.250" | 0.50" | 1.00-10 STUB ACME |
| RC150125AC08 | 1 1/2" | 0.125" | 1.500" | 0.63" | 1.00 AMMT |
| RC175156AC08 | 1 3/4" | 0.156" | 1.750" | 0.75" | 1.00 AMMT |
| RC200156AC09 | 2" | 0.156" | 2.000" | 1.00" | 1.50 AMMT |
| RC238175AC09 | 2 3/8" | 0.175" | 2.375" | 1.00" | 1.50 AMMT |
We offer optional equipment, alternative sizes, pressure ratings, materials and thread connections. Please contact us for more information.
