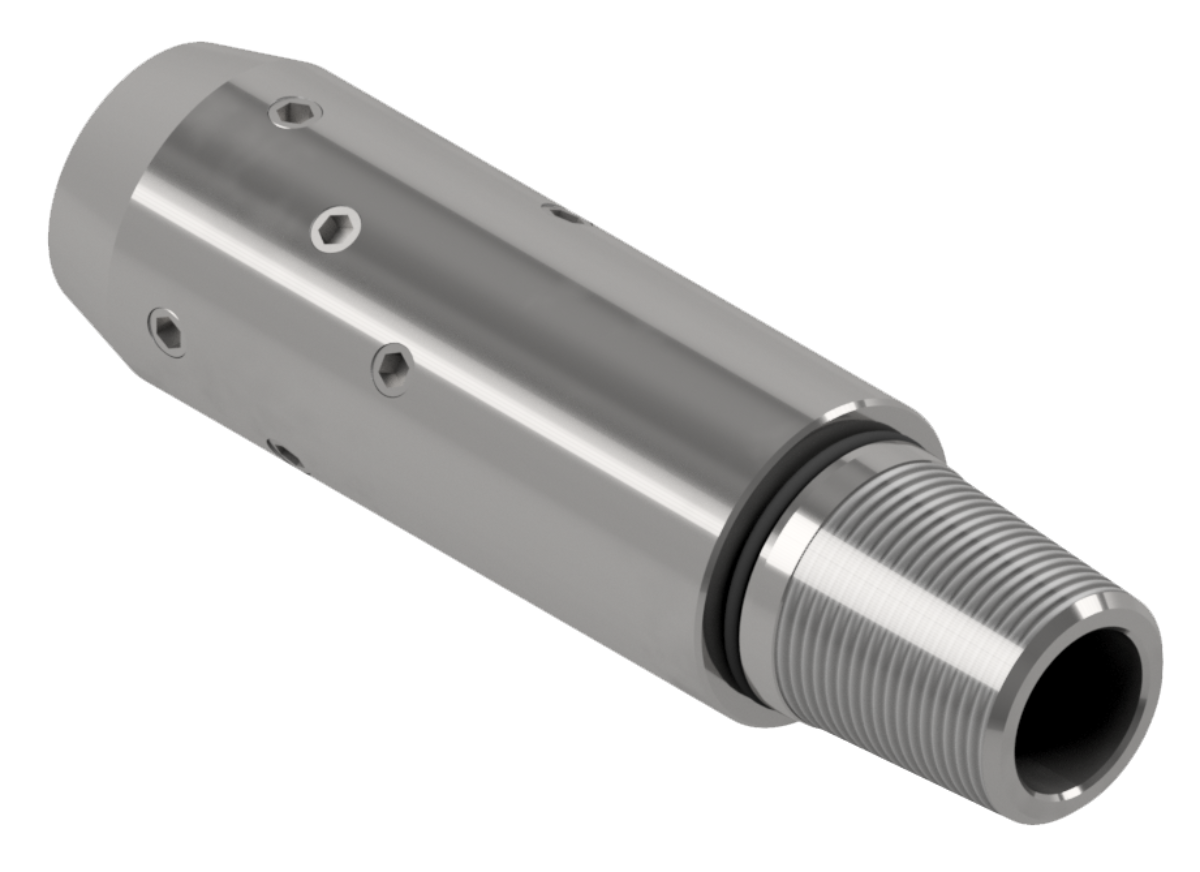

External Dimple Connector
FUNCTIONALITY
InterventionDEPLOYMENT
SECTORS
The DTI Dimple Connector forms a full bore sealed joint between the outside of the coiled tubing and the CT tool string. The Dimple Connector is made up to the coiled tubing by using a set if set screws made up through the body of the dimple connector into a pattern of dimple made in the outside of the coiled tubing.
The dimples are made using a DTI Dimple On/Extractor tool. For harder and/or coiled tubing with larger wall sections a Hydraulic Dimple-On Tool can be used.
This is a very strong connector capable of transmitting torque and is generally used in milling and fishing operations.
Features
& Benefits
- Connected to the coiled tubing via grub/set screws.
- Compact.
- Double Viton O-Ring seals.
- Required a dimple-on tool to form the dimples in the coiled tubing.
- Capable of transmitting torque.
| PART NUMBER | OUTSIDE DIAMETER | COIL SIZE | MAKE-UP LENGTH | THREAD CONNECTION |
|---|---|---|---|---|
| DC125169AC08 | 1.688" | 1 1/4" | 7.25" | 1.00 AMMT |
| DC150212AC09 | 2.125" | 1 1/2" | 5.25" | 1.50 AMMT |
| DC175212AC09 | 2.125" | 1 3/4" | 5.25" | 1.50 AMMT |
| DC200288AC23 | 2.875" | 2" | 5.75" | 2.38 PAC |
| DC238288AC23 | 2.875" | 2 3/8" | 5.00" | 2.38 PAC |
We offer optional equipment, alternative sizes, pressure ratings, materials and thread connections. Please contact us for more information.
